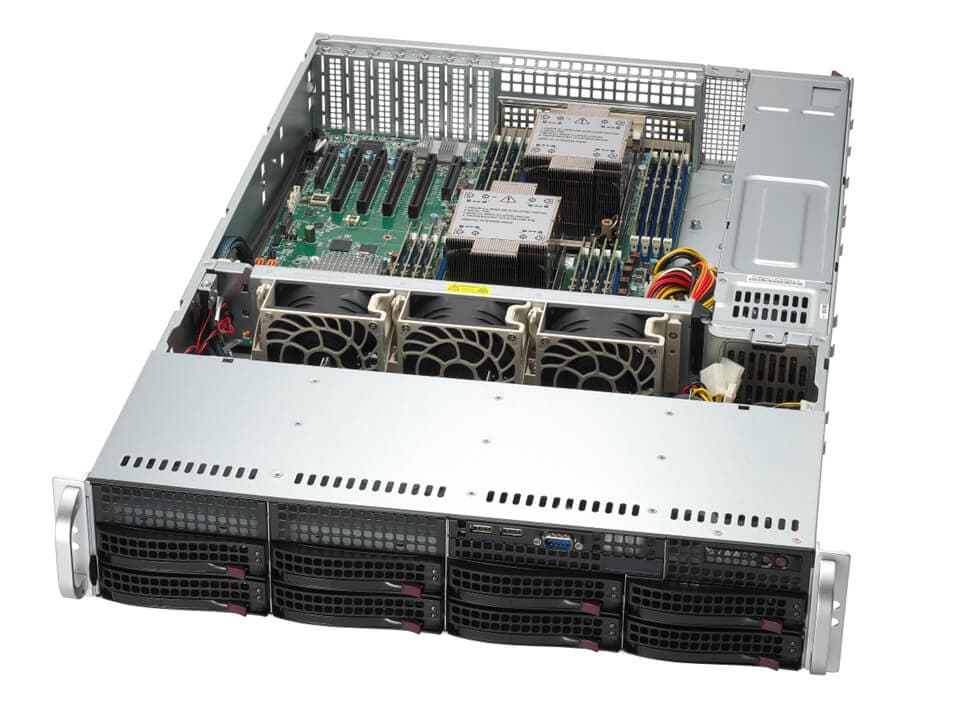

DP SuperServer SYS-621P-TR

Key Features

1. Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
2. 16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
3. 4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
4. Broadcom BCM5720 Dual ports 1G LAN
5. 8x hot-swap 3.5'' SATA3 drive bays, SAS3 with additional SAS controller card; Onboard: 2x PCIe 4.0 x2
6. 1200W Redundant Titanium level Power Supplies

Platform: SYS-621P-TR	1 шт.
SYS-621P-TR
CPU: Intel® Xeon® EMR 4510 2P 12C/24T 2.4G 30MB 150W	2 шт.
Intel® Xeon® EMR 4510 2P 12C/24T 2.4G 30MB 150W
RAM:32GB DDR5-4800 ECC RDIMM	шт.
32GB DDR5-4800 ECC RDIMM
SSD NVMe:
SSD 2.5" NVMe PCIe4 1.6TB 3DWPD TLC D	шт.
SSD 2.5" NVMe PCIe4 960GB 1DWPD TLC D	шт.
VROC (RAID for NVMe):
Intel VROC HW key (RSTe) Premium RAID 0, 1, 10, 5	шт.
Intel VROC HW key (RSTe) Standard RAID 0, 1, 10	шт.
RAID (SAS/SATA):
RAID 16 int 12Gb/s ports, x8 Gen4, Supports 0, 1, 5, 6, 10, 50, 60, 8GB DDR4 onboard cache	шт.
RAID 8 int 12Gb/s ports, x8 Gen4, Supports 0, 1, 5, 6, 10, 50, 60, 8GB DDR4 onboard cache	шт.
HDD - SAS (Maximum of 8 pieces without NVMe):
HDD 1.2TB, 2.5", 10K RPM, SAS 12Gb/s, Cache 256MB	шт.
HDD 1.8TB, 2.5", 10K RPM, SAS 12Gb/s, Cache 256MB	шт.
HDD 2.4TB, 2.5", 10K RPM, SAS 12Gb/s, Cache 256MB	шт.
SSD - SATA (Maximum of 8 pieces without NVMe):
SSD 1.92TB SATA 6Gb/s 2.5" <2DWPD	шт.
SSD 1.92TB SATA 6Gb/s 2.5" <3DWPD	шт.
SSD 3.84TB SATA 6Gb/s 2.5" <2DWPD	шт.
SSD 3.84TB SATA 6Gb/s 2.5" <3DWPD	шт.
SSD 480GB SATA 6Gb/s 2.5" <2DWPD	шт.
SSD 480GB SATA 6Gb/s 2.5" <3DWPD	шт.
SSD 7.68TB SATA 6Gb/s 2.5" <2DWPD	шт.
SSD 960Gb SATA 6Gb/s 2.5" <2DWPD	шт.
SSD 960GB SATA 6Gb/s 2.5" <3DWPD	шт.
